VOYAGER MAINLINE INSPECTION SYSTEM
Capture Mainline Pipe Details in HD

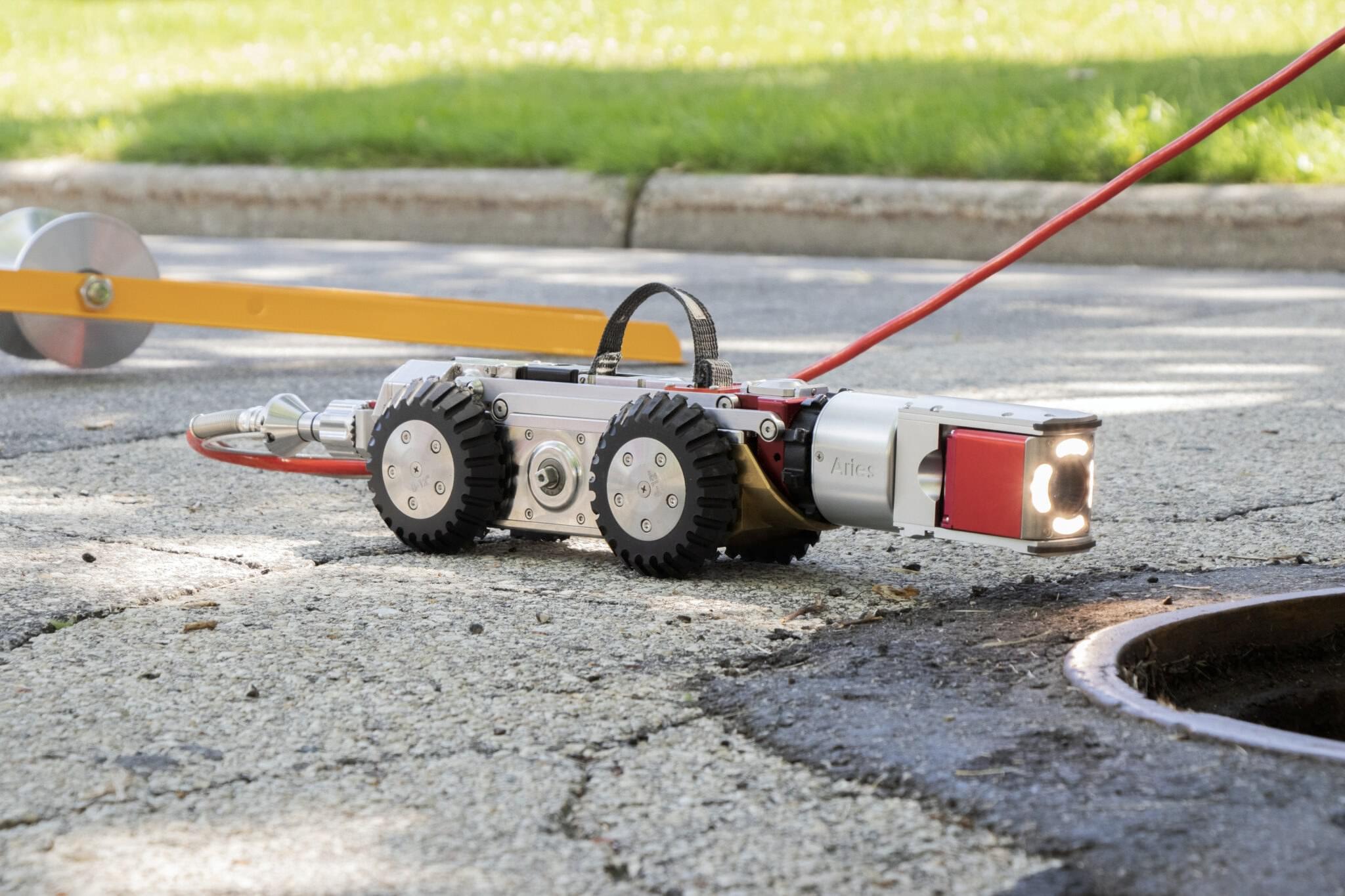

TRANSPORTer
Slim transporter navigates mainlines relined 6″ - 72” with camera extension lift. Equipped
with a rear-viewing HD camera and motorized lift to center the camera in a range of pipe
sizes.

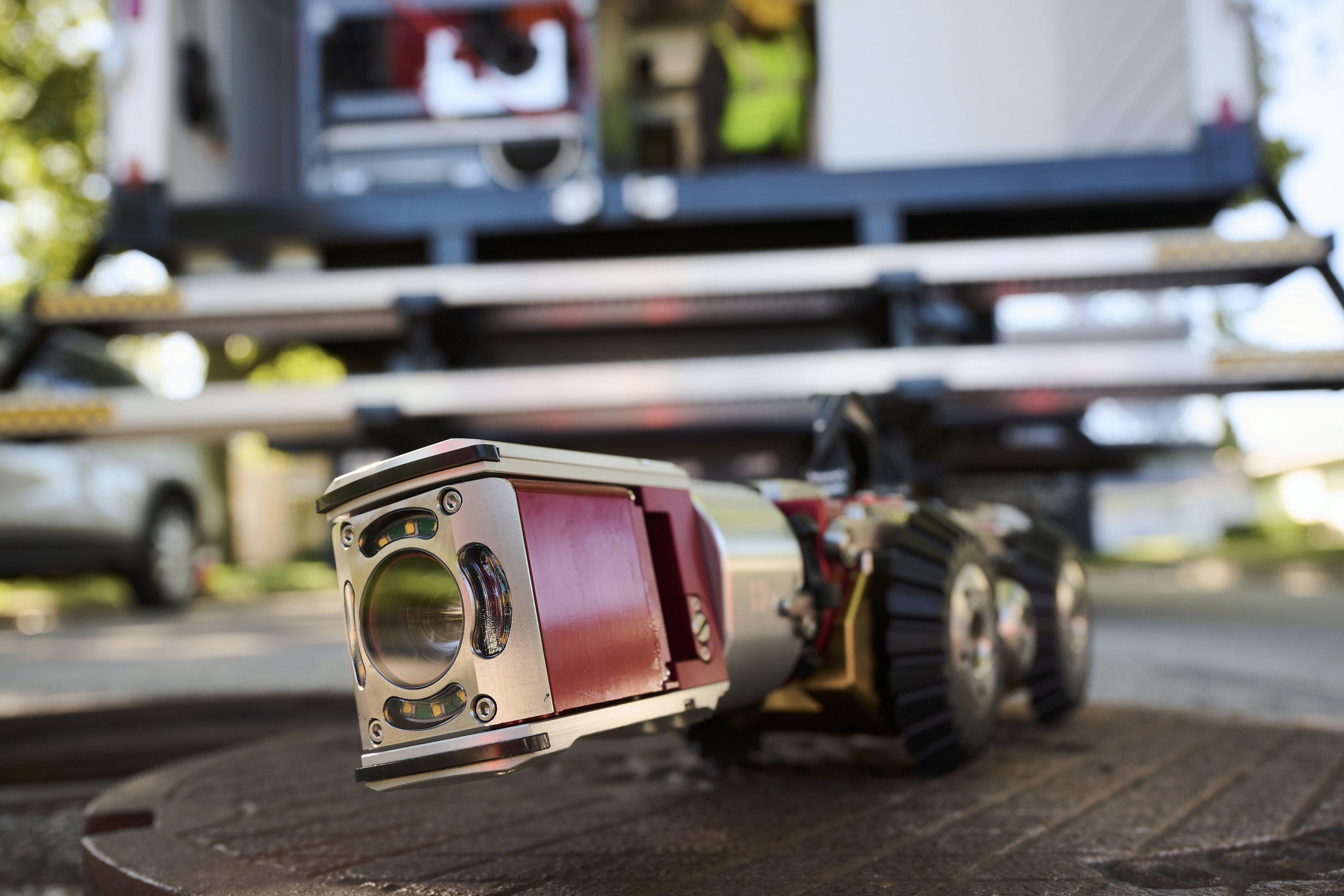

WiperCam Camera
Pan and Tilt 1080p full HD video camera with 120x zoom captures every pipe detail. Built-in
lens wiper technology keeps the view clear and crews working in the pipe.

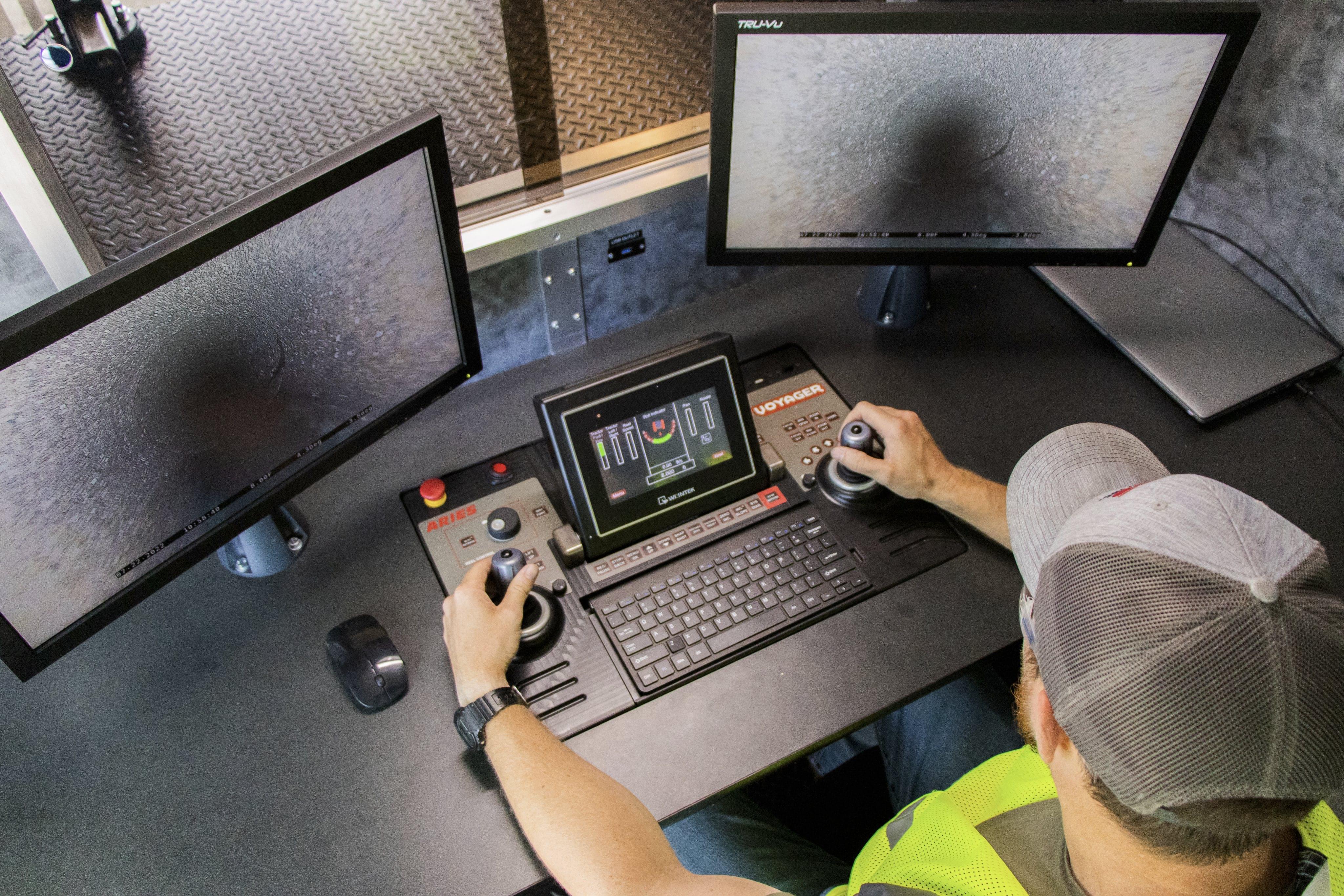

DESKTOP CONTROLLER & PENDANT
Ergonomic, dual-joystick, CANbus controller delivers instantaneous transporter and camera
response, while the handheld pendant allows for operation right at the manhole.

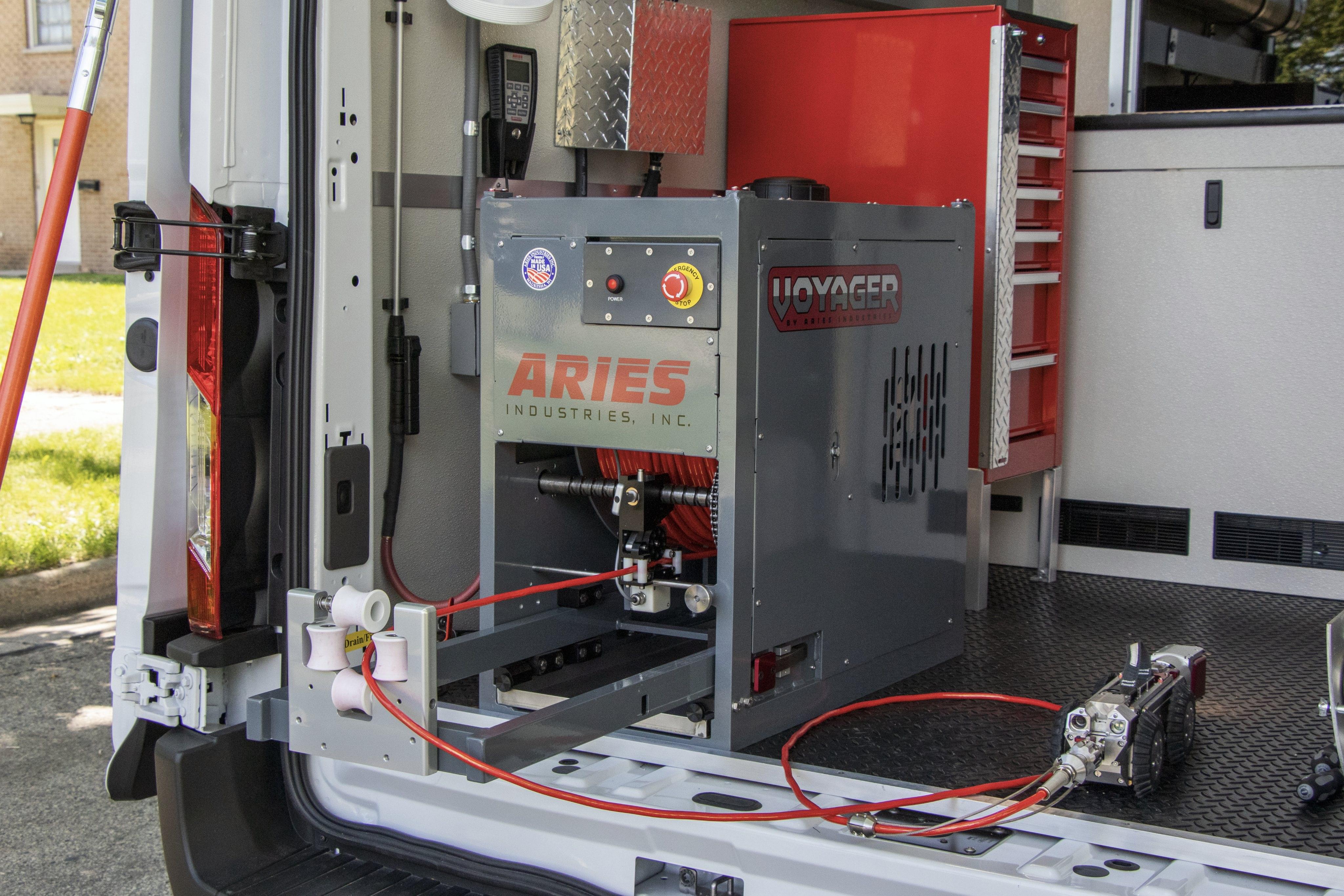

CABLE reel
Truck-mounted reel with 1200' of 6-conductor cable, simple reel termination, and one-button
downrigger deployments improve operation, extend reach, and minimize setups.
download brochure
Product Overview
Maximize uptime and capture clear mainline inspection video in challenging conditions. With unmatched clarity, power, and control, the voyager™ HD mainline inspection system helps crews get more done—faster. Ideal for inspecting relined mainlines from 6″ to 72″, the Voyager™ HD powers through debris, navigates obstacles, and captures every pipe detail with ease. Built in the USA and backed by our Total Support Team.
Features & Benefits
- CLARITY: HD Pan & Tilt video camera with 120x zoom delivers a 360° crystal-clear view of mainline conditions.
- POWER: Slim, rugged, and versatile transporter is built to withstand harsh conditions underground and navigate obstacles easily.
- CONTROL: Advanced ergonomic controller, designed for operator comfort gives instantaneous camera and transporter response.
- MAXIMUM UPTIME: Rugged construction, easy operation and maintenance, and parts and service through our Total Support program help keep crews up and running in the field.
Voyager Mainline Inspection System Specifications
Transporter
- Crawler fits pipes re-lined 6”- 72″ with camera extension lift
- Standard motorized camera lift with internal gearing
- Digital CANbus controls for instantaneous crawler & camera response
- Autonomous time-saving functions such as auto-drive to waypoints & auto-retrieve
- Tool-less camera attach/detach with rugged connector
- Tool-less cable attach/detach
- Tough, reflective Kevlar lift strap with deployment loop
- HD backup camera
Camera
- Pan & tilt, 120x zoom HD camera captures and transmits quality, HD video (1080p x 1920p)
- In-the-pipe Aries WiperCam lens cleaning system with field-replaceable wipers
- Optional dual camera lasers for accurate crack measurement
- Front camera bumpers
Desktop Controller
- Ergonomic controller with keyboard and dual joysticks
- Responds to multiple controls simultaneously
- Graphical crawler roll-angle display
- Rollover risk alerts
- Loss of seal integrity alerts with proactive internal pressure, temperature & humidity monitoring
- Crawler speed display
- Future: Ability to record in standard definition
Cable Reel
- Truck-mounted reel with 1200 ft of 6-conductor cable
- 1200-pound brake strength
- Simple 6-wire resinless cable termination
- Cable management with electronic clutch responsive to crawler movement
- Street-accessible reel controls with emergency stop
- Quick one-button downrigger deployment
- Level wind with footage counter
- Precisely adjustable drum tension control
Pendant
- Control transporter, reel & camera at the manhole with a handheld pendant
